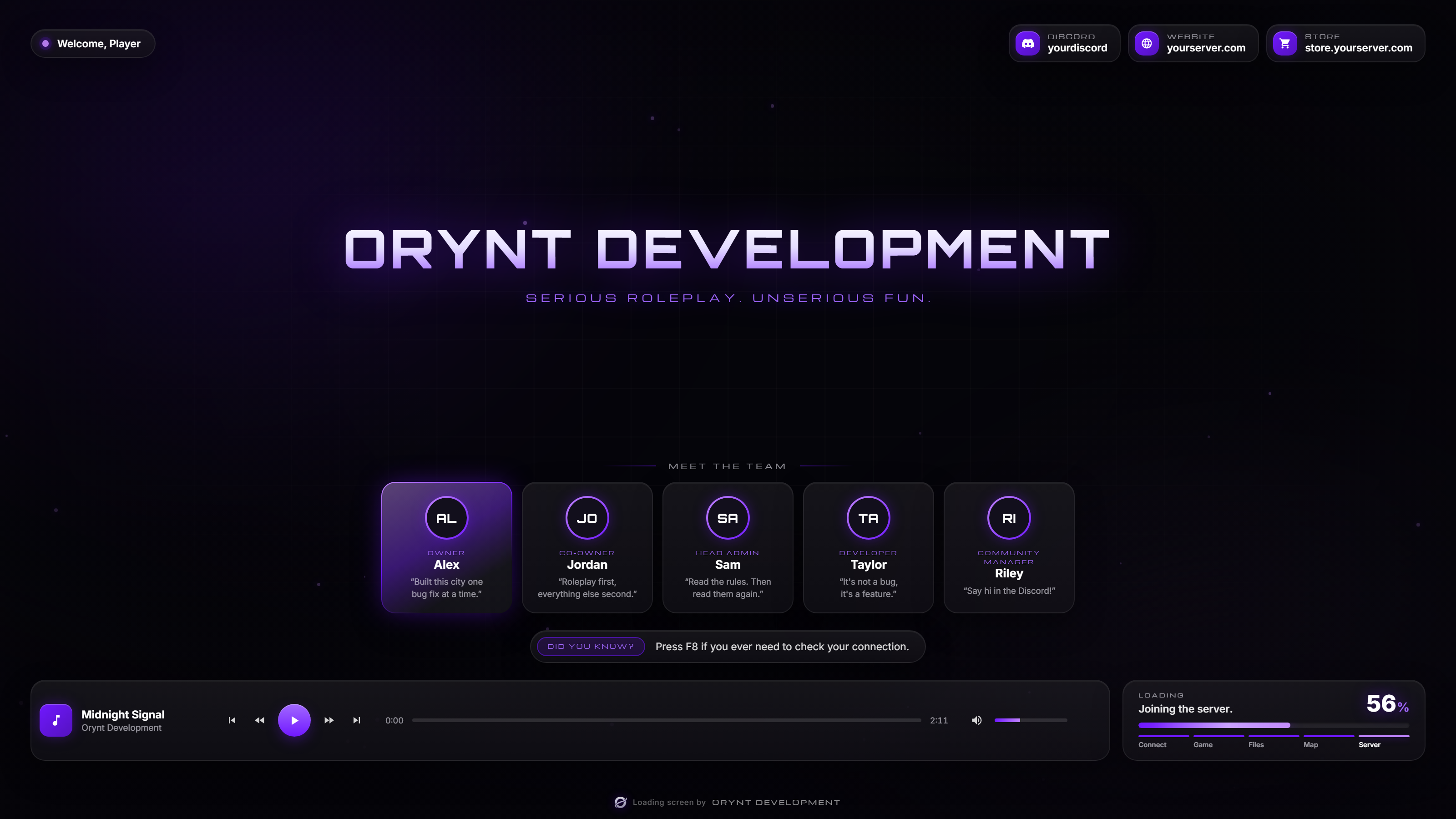

Loading Screen

Features

• Your branding: server name (or logo) and tagline in the middle, theme colors, font and corner rounding.
• "Welcome, {name}" with the joining player's FiveM name.

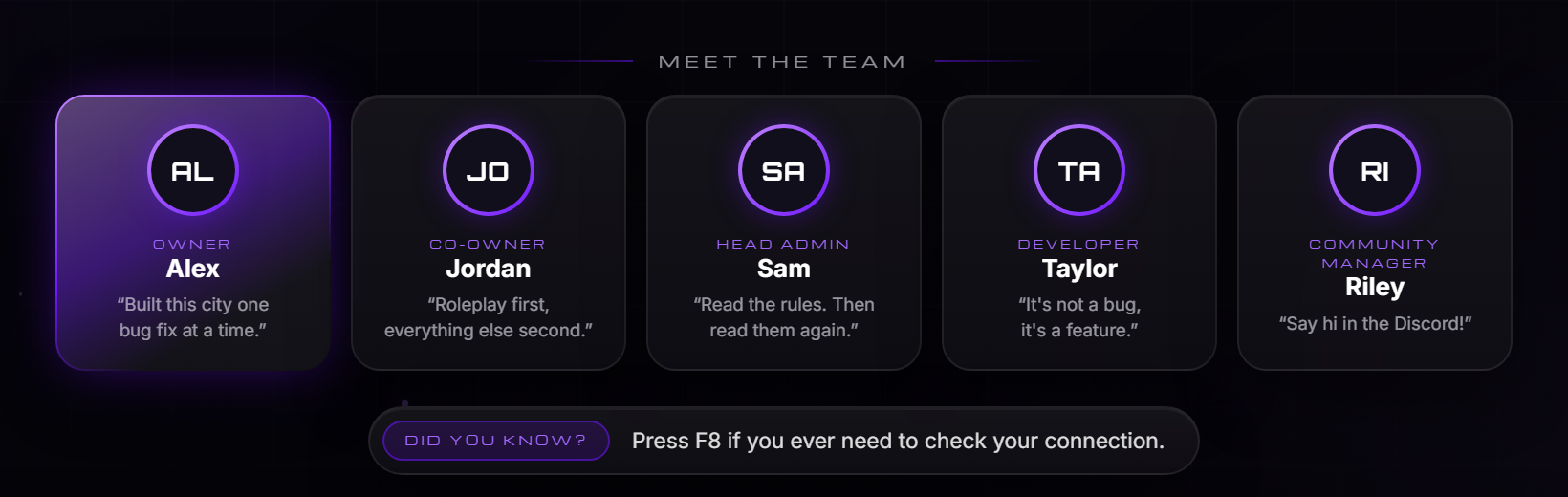

• Staff cards: 1 to 8 members with picture (or initials), role, name and quote. Highlight one, e.g. the owner.
• Rotating tips: "Did you know?" messages that change every few seconds.
• Social links: Discord, website, store, TikTok, YouTube, X, Instagram.
• Real loading bar: follows FiveM's loading and shows the stage ("Loading the map", "Joining the server"...), with markers under the bar that light up stage by stage.
• Music player: playlist, play/pause, previous/next, rewind/fast-forward, seek bar, volume and mute, keyboard shortcuts. Each player's volume is remembered.
• Backgrounds: an mp4 video (local or hosted), an image, or the built-in animated background (no files needed).
• Includes an original royalty-free track ("Midnight Signal") so the music player works out of the box.
• Works on any server: no framework, no dependencies.
• Fully translatable: every text is in config.js.

Requirements

None. It works with ESX, QBCore, Qbox, standalone or anything else.

Only one loading screen can run on a server: remove or stop any other one (e.g. esx_loadingscreen, qb-loading).

Files

orynt_loading/
├── fxmanifest.lua
├── server.lua          Passes the player's name to the loading screen
├── README.md
├── LICENSE.md
└── html/
    ├── config.js       All settings (edit this)
    ├── index.html
    ├── style.css
    ├── script.js
    ├── img/            Your logo, staff pictures, background image
    └── media/
        └── music/      Songs (includes midnight-signal.mp3)

Installation

1. Put the orynt_loading folder in your resources folder.

   Keep the name orynt_loading. Renaming it is fine for FiveM, but the player's saved volume is stored per resource.

2. Stop your old loading screen. In server.cfg, remove its ensure line (e.g. ensure esx_loadingscreen), or delete it from your resources. If it's started by a folder (e.g. ensure [core]), move it out of that folder.
3. Add to server.cfg: cfg ensure orynt_loading
4. Edit html/config.js (server name, colors, staff, tips, socials, music).
5. Restart the server and join. Changes to the loading screen show on your next join.

Configuration (html/config.js)

server

theme

background

socials

A list of { icon, label, value }. Icons: discord, web, store, tiktok, youtube, twitter, instagram. The loading screen can't open links, so value is the address players should type. Remove a line to hide it.

staff

tips

loading

music

text

Every word shown on screen, including the loading stages. Translate here. {name} is filled in by the script.

Adding your own media

Local files go in html/img/ or html/media/ and are referenced like 'img/logo.png'. Links (FiveManage, Discord CDN, your website) work everywhere a path does.

Players download local files before the loading screen appears, so big files make joining slower:

• Keep local images small (under 1 MB).
• Host videos and songs online when they're bigger than about 10 MB, e.g. on FiveManage: video: 'https://r2.fivemanage.com/xxxx/background.mp4'.
• Use mp4 (H.264) for video and mp3 for music.

Only use music you have the rights to. The included track "Midnight Signal" is original and free to use on your server.

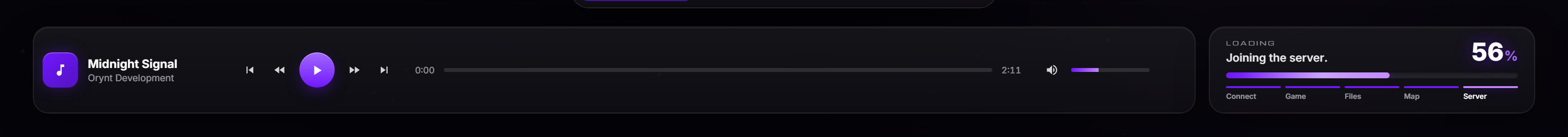

The music player

Controls: play/pause, previous, next, rewind, fast-forward, seek bar, volume and mute. The volume also controls the background video's sound (background.videoVolume).

Keyboard (while the loading screen has focus): Space play/pause, ← → seek, ↑ ↓ volume, N next, B previous, M mute.

If the game blocks autoplay, a "Click anywhere to start the music" message appears.

Previewing in a browser

Open html/index.html in Chrome or Edge to see your changes without joining. Outside FiveM it plays a fake join so the loading bar moves, and greets "Player". (Some browsers block local music until you click the page.)

Troubleshooting

Updating

Replace the resource folder with the new version and restart the server. Your html/config.js comes back by itself: every start it's copied to the server (its KVP, outside the resource folder), and when the new version starts with the file from the download, yours is put back and the resource restarts once to load it. New options in a newer version are listed in the changelog below: copy the ones you want from the download's config.js.

Media you added (html/img/, html/media/) is not copied: keep a copy of your logo, music and video files and put them back after replacing the folder.

To let it restart itself, add add_ace resource.orynt_loading command.ensure allow to server.cfg.

Updating from a version before 1.1.0: those don't save your settings yet, so this one time keep a copy of your html/config.js and put it back after replacing the folder.

Changelog

• 1.1.0: new Orynt look: Orynt purple, Orbitron server name, glass cards, a bigger loading card with stage markers, the new Orynt emblem in the credit. color-mix() removed so older FiveM builds show every color. Updates keep your settings now: replace the folder and your config comes back by itself (see Updating).
• 1.0.0: first release.

License

Free and open: every file is readable and editable. See LICENSE.md. In short: use and change it on your own servers; don't reupload or resell it; keep the Orynt Development credit.

© Orynt Development
